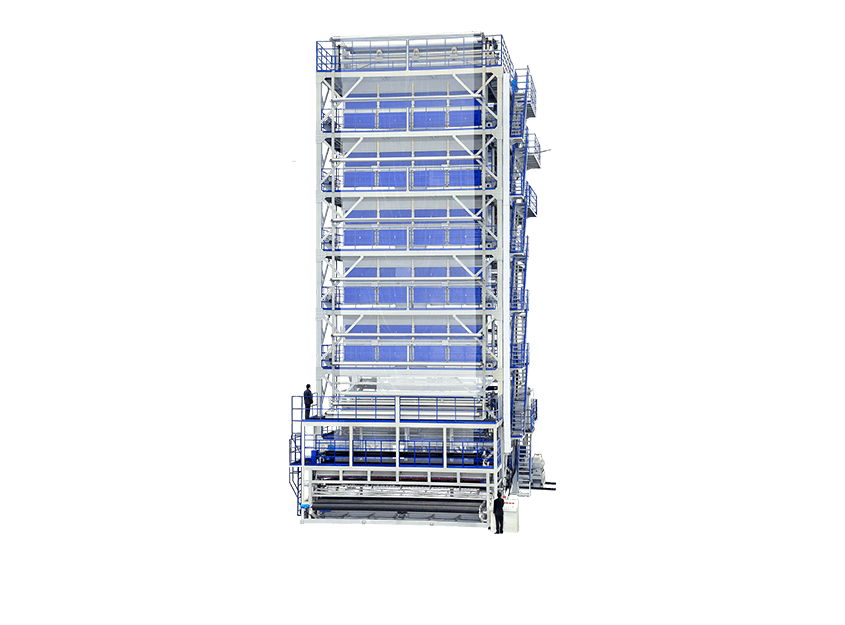

M3N-14000 Agricultural Blown Film Machine
The M3N-14000 Agricultural Blown Film Machine is engineered to produce high-quality agricultural films with superior strength and uniform thickness. Utilizing advanced multi-layer co-extrusion technology, this machine is ideal for manufacturing greenhouse films, mulch films, and silage films.
Key Features:
- Multi-Layer Co-Extrusion: Supports 3-layer film structures, enhancing film performance and durability.
- Wide Film Width: Capable of producing films up to 14,000mm in width, meeting various agricultural coverage needs.
- Advanced Die Head Design: Features a spiral mandrel structure ensuring uniform material distribution and optimal film quality.
- Efficient Cooling System: Equipped with an internal bubble cooling (IBC) system for rapid cooling and stable film formation.
- Digital Control System: Offers centralized control over temperature, pressure, and line speed, ensuring consistent production quality.
Application
Parts Introduction
Agricultural Film Extruders
Based on rich experience considering resin features and rheological principles, by continuous simulation and optimized designing, JM has launched various serials of extruding system for processing of different materials. Unique structure can effectively lower down melt temperature and applicable for processing of PE, EVA materials. It also features with high output capability, low energy consumption and great plasticization.
Agricultural Film Die Head
The die head adopts spiral mandrel structure with O shape distribution channels, which shorten material retention time and ensure fast change of different recipes. Meanwhile each layer material injection hole has the same length. And the converge path is short, which ensure even combination of materials. This machine designing can effectively avoid burning and incomplete plasticization. Die head is made of high quality alloy steel with strict forging treatment to ensure its mechanical strength and extend its service life. It is also milled in imported Germany precise CNC center, so it has even thickness variation.
Control System
Through digital electrical control system, it realizes centralized control for the whole machine temperature, rotating speed, pressure, nip roll, tension and line speed. Meanwhile it can display and monitor each point temperature, pressure, current, voltage, tension, speed, length, thickness variation etc. It also has automatic warning and self-diagnosis functions.
Equipment Exhibition
The 3-7 layers blown agricultural film extrusion machine display, including agricultural film extruders, agricultural film die head, and control system.
Technical Parameter
Please pull it to show more info
| Model |
|---|
| Multi Layer |
| Max. Film Width |
| Film Thickness Range |
| For processing of |
| Screw Diameter |
| Max. Extrusion throughput |
| Total Power |
| Max. Haul-off Speed |
| Dimension |
| 3 | 3 | 3 | 5 | 5 |
| 14000mm | 16000mm | 20000mm | 14000mm | 20000/16000PO mm |
| 0.06-0.12mm | 0.06-0.12mm | 0.06-0.12mm | 0.06-0.12mm | 0.06-0.12mm |
| LDPE, LLDPE, mLLDPE, EVA, POE, etc. | LDPE, LLDPE, mLLDPE, EVA, POE, etc. | LDPE, LLDPE, mLLDPE, EVA, POE, etc. | LDPE, LLDPE, mLLDPE, EVA, POE, etc. | LDPE, LLDPE, mLLDPE, EVA, POE, etc. |
| Φ130/160/130mm | Φ150/160/150mm | Φ160×3mm | Φ130×5mm | Φ150×5mm |
| 1400kg/H | 1600kg/H | 1800kg/H | 2000kg/H | 2500kg/H |
| 1200kw | 1600kw | 1850kw | 1650kw | 2700kw |
| 25-35m/min | 25-35m/min | 25-35m/min | 25-35m/min | 25-35m/min |
| 19×15.5×23m | 24×16×28m | 26×15×30m | 19×16×24.5m | 32×15×32m |
Other models such as M3N-10000, M3N-12000, M3N-24000, M5N-12000, M5N-16000, M5N-24000 and etc. would be also available.
Besides complete machine solution for production of agricultural greenhouse film, individual large size die head (in 3-7 layers) would be also available from Jinming, major die diameter includes but not limited to following sizes: 3600mm, 3450mm, 3000mm, 2650mm, 2350mm, 2000mm, 1800mm, 1600mm, 1400mm, 1250mm, 1000mm and etc.
