ClassicX Series

5 to 11 Layer Blown High-barrier Film Extrusion Machine

ClassicX blown film line is Jinming's mid-end customized and high-output series with the standard parameter and the customization based on customers' actual production needs and processing conditions, so as to meet the production needs on film evenness control, transparency, stiffness, output, etc.

Application

Parts Introduction

Die Head

Based on simulation designing, the die head is featured with perfect thickness tolerance for
various resins by its streamlined channels without dead angle to achieve optimized flow and distribution. The low body structure is not only good for melt flow but also enhance the self-cleaning performance of die head by shorten the time to change recipes and decrease material consumption.

Die Head

Automatic Air Ring

Jinming has developed a modular designing of multiple air tuyeres air ring with online thickness measuring system, which evenly control air temperature by heaters to effectively control bubble horizontal thickness variation, meanwhile with the close-looped control of thickness profiler, it will be automatically adjusted. The air ring is made of high quality aluminum alloy. Air inlet is on its side, featured with big chamber, reasonable designing of distribution plate with small pressure loss, precise air supply of each tuyere and effective support for the bubble to ensure its stability.

Automatic Air Ring

WSD-III Winder

The winder adopts modular designing with multiple functions, which is applicable for winding various materials and alternative to 3'' or 6'' air shafts. It has pre-acceleration function to decrease tension fluctuation and increase winding quality. It also integrated with auto film cutting, reel changing, unload, meter counting and taper control. The tension control system can automatically chase film position according to its surface tension and increase film flatness. This winder has effectively decrease labor intensity and waste so that enhance working efficiency and improve its safety performance.

Equipment Exhibition

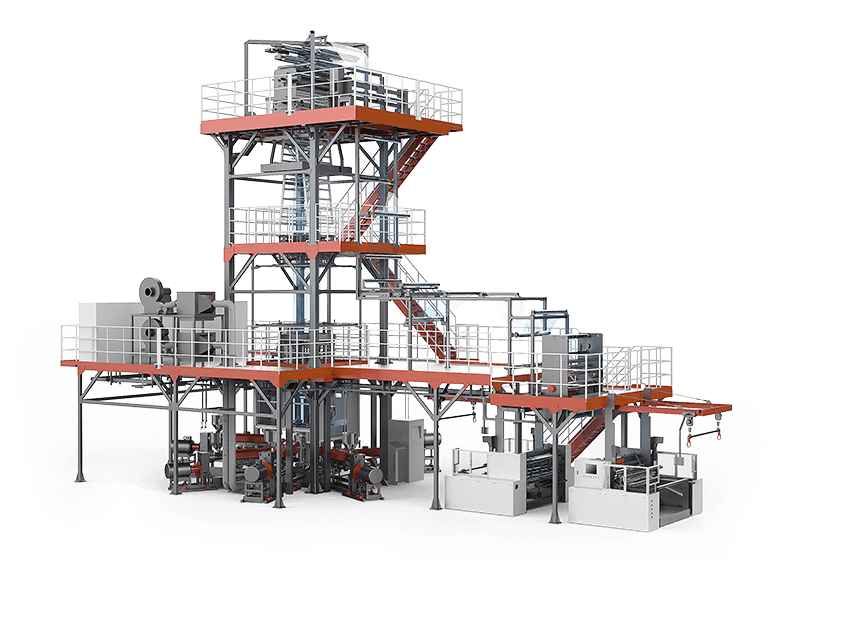

The 5-9 layer high-barrier film extrusion machine display, including die head, automatic air ring, and WSD-III winder.

WSD-III Winder

Technical Parameter

Please select the one you need into the inquiry cart

Please pull it to show more info

Model
Layer
Max. Film Width
Film Thickness Range
For processing of
Screw Diameter
Max. Extrusion throughput
Total Power
Max. Haul-off Speed
Dimension
5 7 7 9
1300mm 1500mm 2200mm 1100mm
0.05-0.15μmm 0.05-0.15mm 0.05-0.15mm 0.05-0.15mm
PE, EVA, PA, EVOH, PVA and etc. PE, EVA, PA, EVOH, PVA and etc. PE, EVA, PA, EVOH, PVA and etc. PE, EVA, PA, EVOH, PVA and etc.
Φ75/55/55/55/75mm Φ65mm×2+Φ60mm×5 Φ75mm×2+Φ65mm×5 Φ65mm×4+Φ60mm×5
545kg/H 690kg/H 930kg/H 930kg/H
420kw 560kw 700kw 660kw
80m/min 80m/min 80m/min 80m/min
16×8×13.5m 20×8.5×14m 22×10×17m 22x10x15m

Other models such as M5B-1700Q-C、M5B-2300Q-C、M5B-2800Q-C、M7B-1300Q-C、M7B-2300Q-C、M9B-900Q-C、M9B-1300Q-C、M9B-2500Q-C and etc. would be also available.
